Introduction to Common Functions of JHP-A Series Printer Testing Tool V1.8
After connecting the machine to the computer via USB cable Use our printer test tool in the boot state (continuously updated)
Scan the code to download

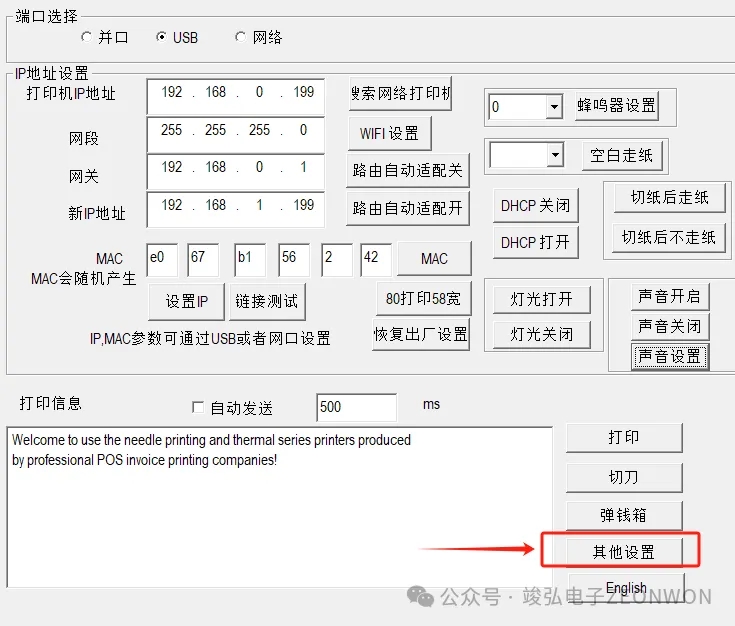

I. Modify IP
Router auto-adaptation on state, plug directly connected to the router cable, the printer will be automatically adapted to the current router, and pop-up current IP address. Enter the address to connect to the printer. If you need to modify the IP needs to be closed, and then modify.

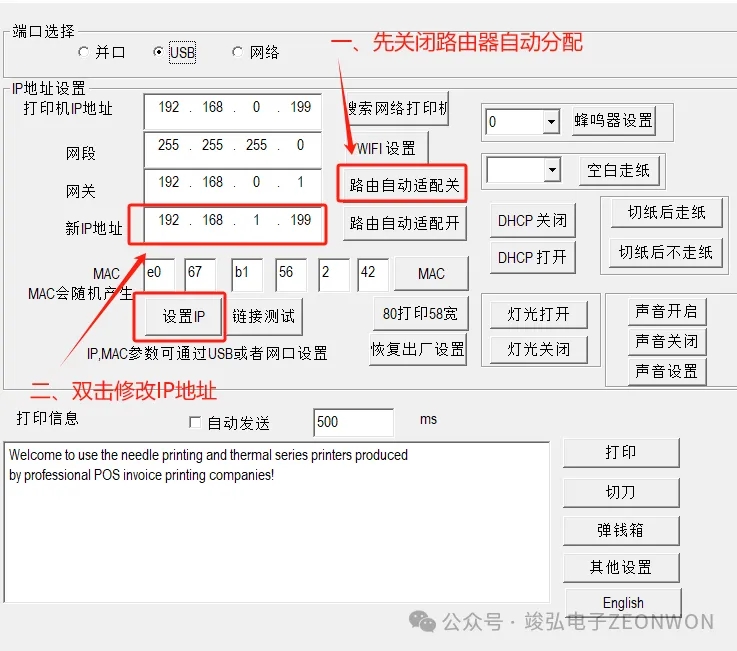

1. Network port version

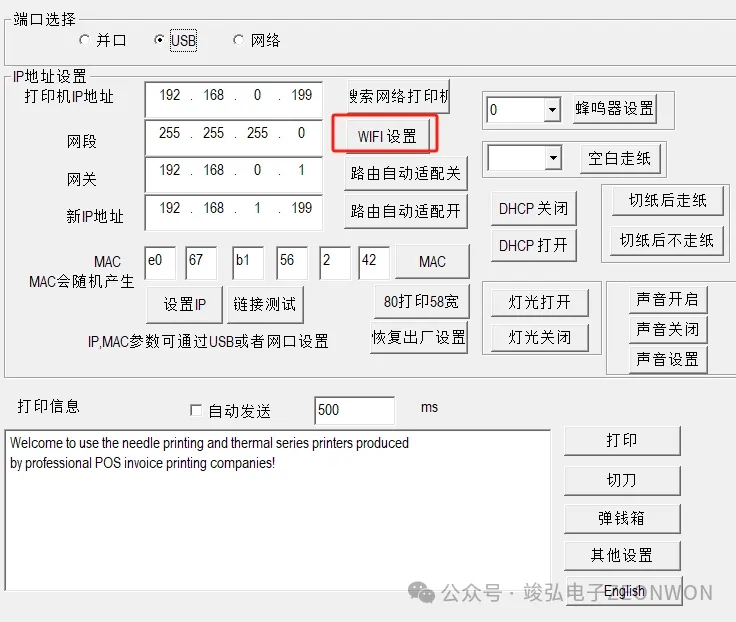

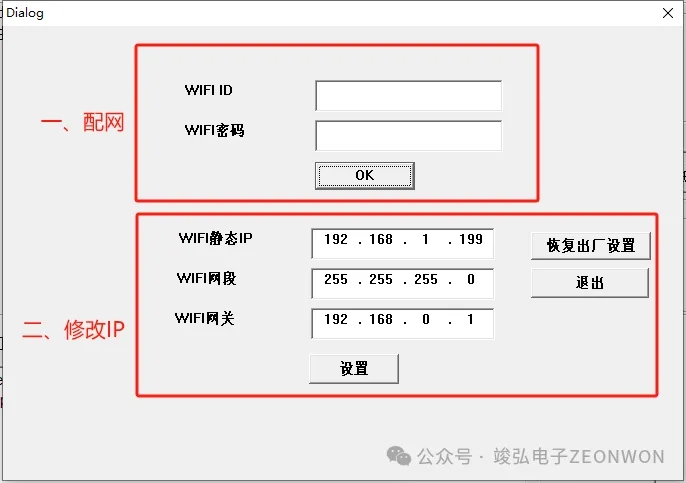

2.WiFi version

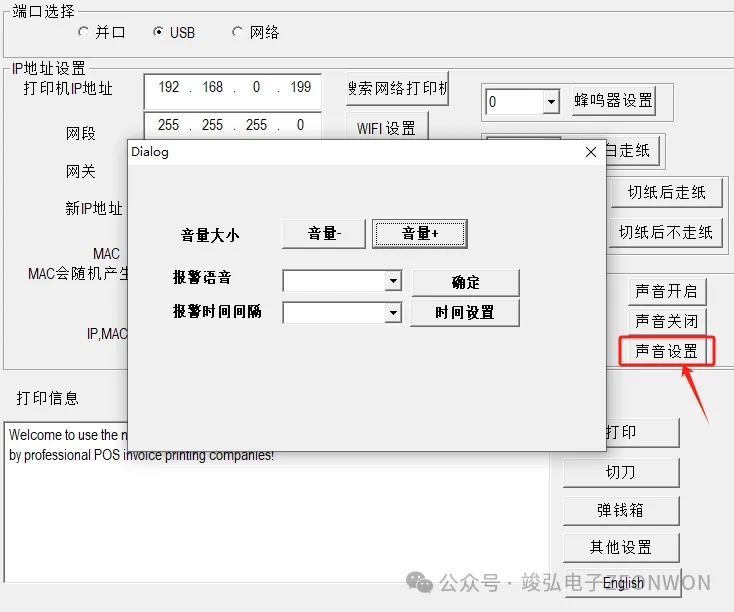

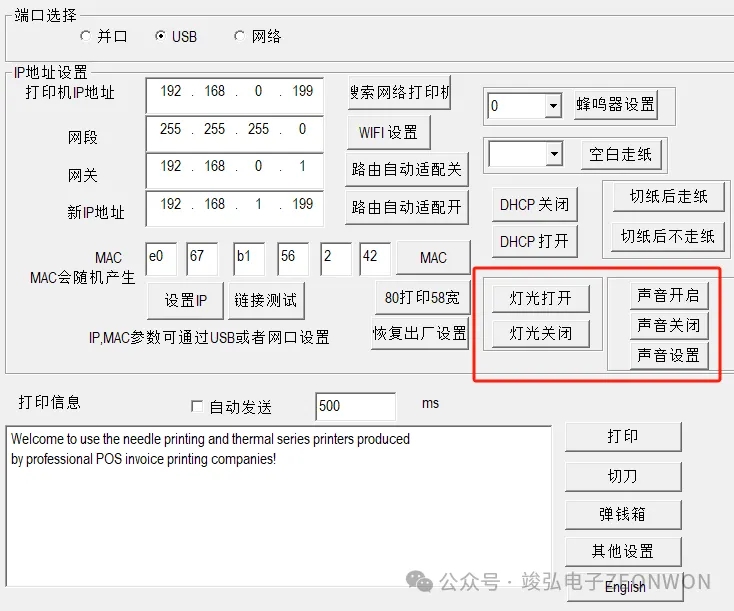

Ⅱ.Sound and light alarm configuration
1. (Both sound/light can be turned off individually) Adjustable volume, sound.

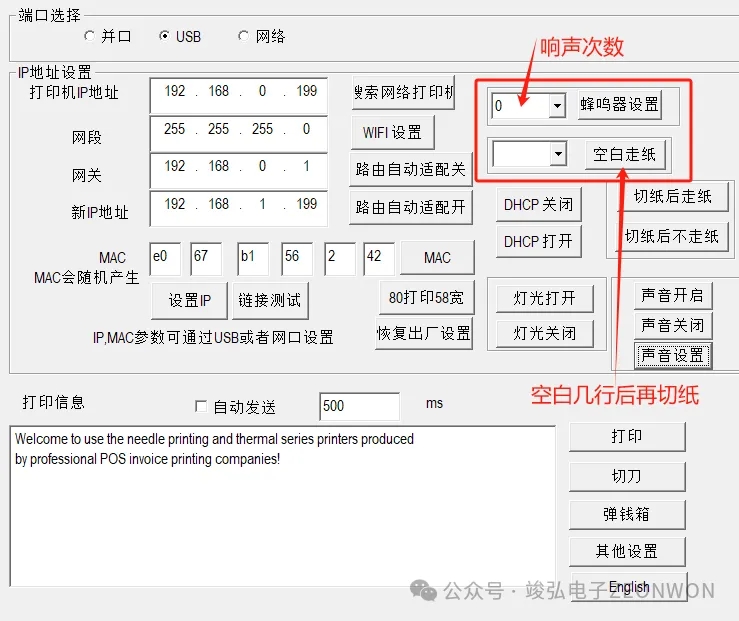

III. Buzzer setting/blanking a few lines before cutting paper
IV. Set the common language
1、Directly select the corresponding language can be, as shown in the figure.
(non-list of other languages need to select ASCII, and then select the corresponding character page)

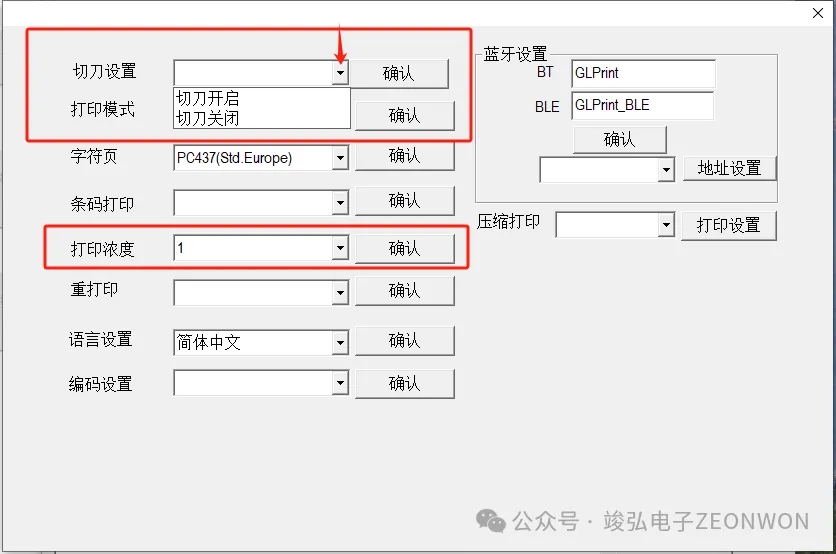

V. Cutter on/off / Print density
(Determine the optimum printing effect according to the paper quality)

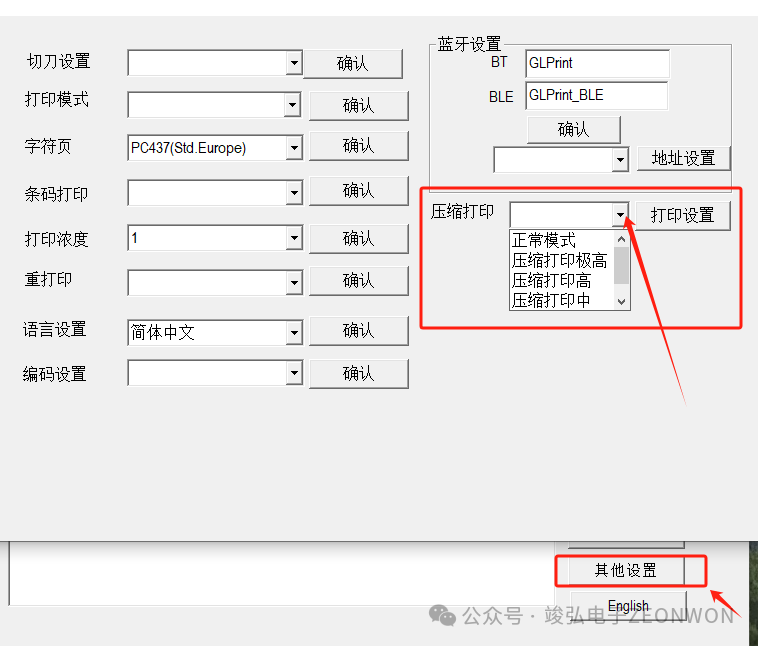

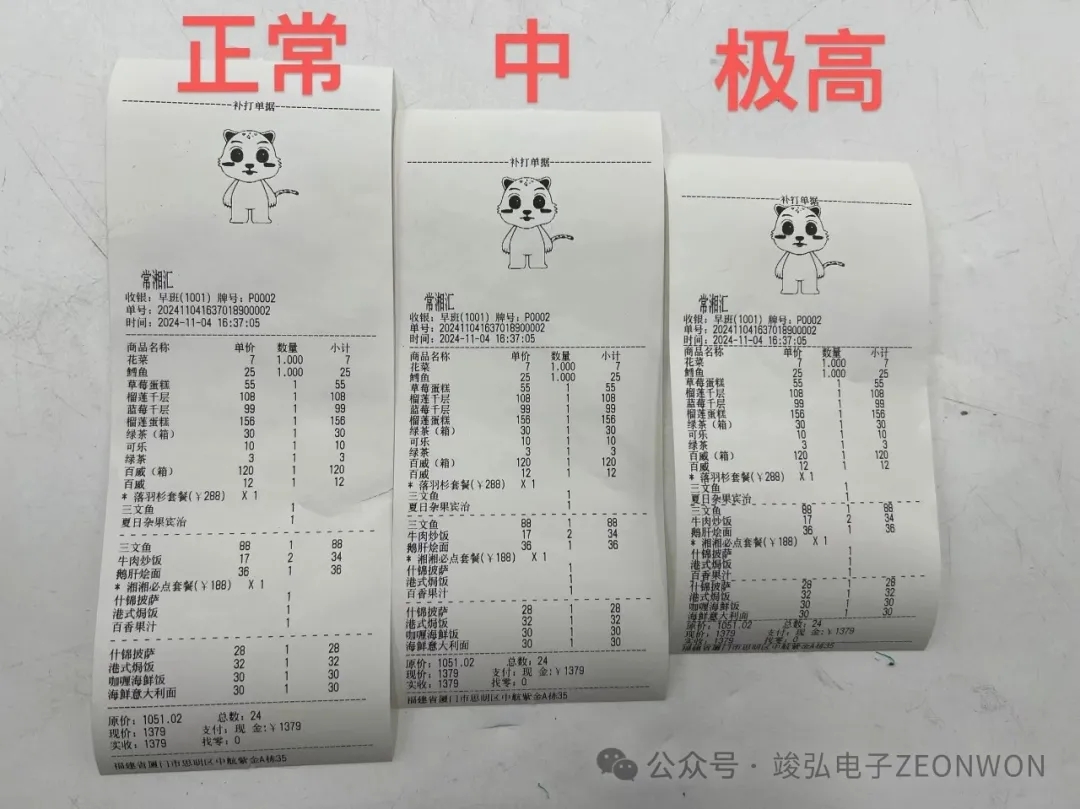

VI. Paper-saving mode (compressed printing)

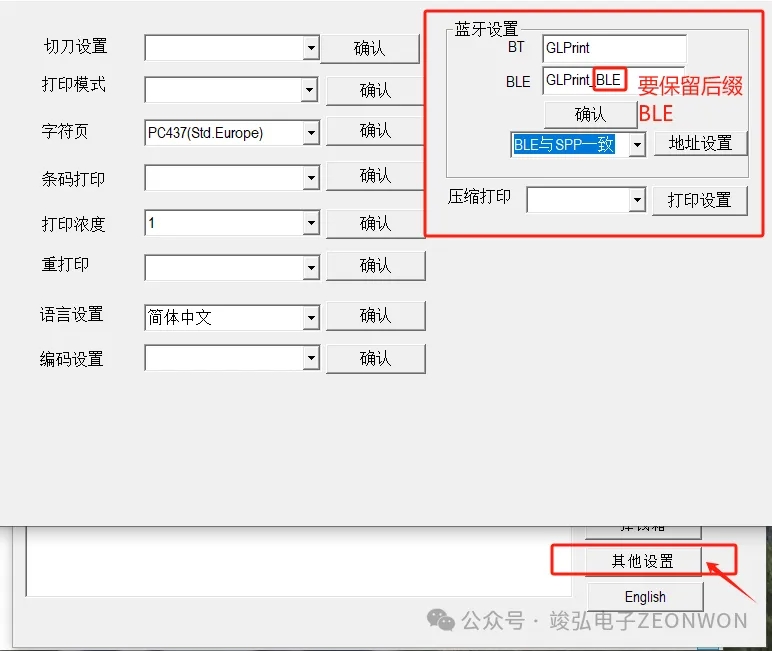

VII. Modify the name of Bluetooth, ble, spp address settings
